Cylindrical curved poles

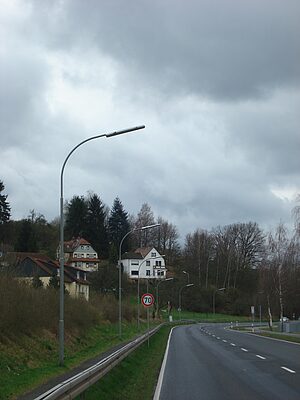

Cylindrical curved poles are made by the same process as straight poles, after which the top of the pole is bent to form the lamp extension. The result is a pole with a continuous, elegant shape that needs no bracket to fix the luminaire. Standard cylindrical curved poles are 6 m to 8 m high; other section sizes, heights and curved-arm lengths can be made on request.

Article code	h 1	h 2	w	r	d1	d2	d3	d4	Weight	Door
	mm	mm	mm	mm	mm	mm	mm	mm	kg	mm
ZPM_60.60.3	6000	1000	1500	800	114	89	60		52	85 x 400
ZPM_65.60.3	6500	1000	1500	800	114	89	60		52	85 x 400
ZPM_70.60.3	7000	1000	1500	800	114	89	60		58	85 x 400
ZPM_75.60.3	7500	1200	1500	800	114	89	60		61	85 x 400
ZPM_80.60.3	8000	1500	1500	800	133	108	89	60	78	85 x 400
